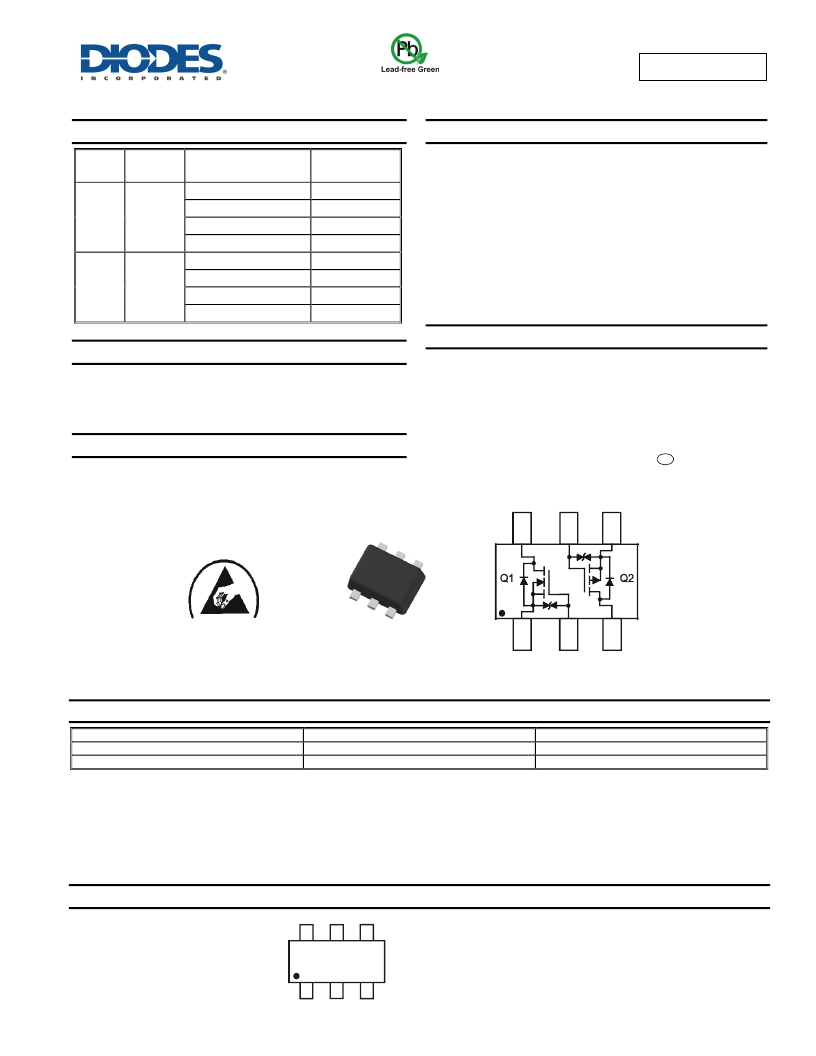

DMC2990UDJ
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Features and Benefits
Device
Q1
Q2
V (BR)DSS
20V
-20V
R DS(ON) max
0.99 ? @ V GS = 4.5V
1.2 ? @ V GS = 2.5V
1.8 ? @ V GS = 1.8V
2.4 ? @ V GS = 1.5V
1.9 ? @ V GS = -4.5V
2.4 ? @ V GS = -2.5V
3.4 ? @ V GS = -1.8V
5 ? @ V GS = -1.5V
I D max
T A = +25°C
450mA
400mA
330mA
300mA
-310mA
-280mA
-240mA
-180mA
?
?
?
?
?
?
?
?
?
?
Low On-Resistance
Very low Gate Threshold Voltage, 1.0V max
Low Input Capacitance
Fast Switching Speed
Ultra-Small Surface Mount Package 1mm x 1mm
Low Package Profile, 0.45mm Maximum Package height
ESD Protected Gate
Totally Lead-Free & Fully RoHS compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3 & 4)
Qualified to AEC-Q101 standards for High Reliability
Description
Mechanical Data
? Case: SOT963
This MOSFET has been designed to minimize the on-state resistance
(R DS(on) ) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
? General Purpose Interfacing Switch
? Power Management Functions
?
Analog Switch
?
?
?
?
?
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See diagram
Terminals: Finish ? Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208 e3
Weight: 0.027 grams (approximate)
ESD PROTECTED
SOT963
Top View
D 1
S 1
G 2
G 1
Top View
Schematic and
S 2
D 2
Transistor Diagram
Ordering Information (Note 5 & 6)
Part Number
DMC2990UDJ-7
DMC2990UDJ-7B
Case
SOT963
SOT963
Packaging
10K/Tape & Reel
10K/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb 2 O 3 Fire Retardants.
5. The options -7 and -7B stand for different taping orientations. Please refer to Diodes website at http://www.diodes.com for further details.
6. For packaging details, go to our website at http”//www.diodes.com/products/packages.html
Marking Information
D1
D1 = Product Type Marking Code
DMC2990UDJ
Document number: DS35481 Rev. 9 - 2
1 of 9
www.diodes.com
March 2013
? Diodes Incorporated
